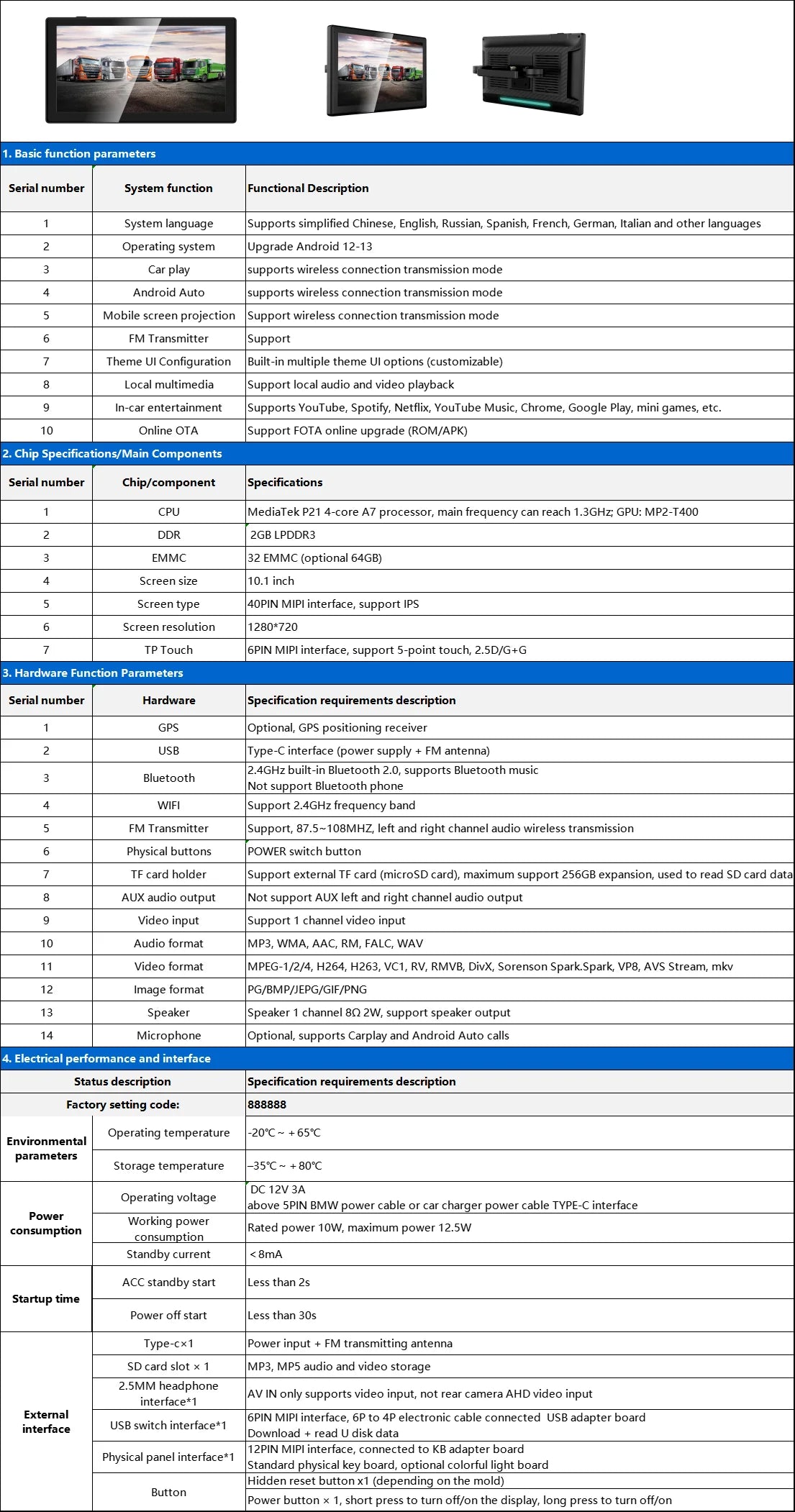

1. Basic function parameters

Serial number

System function

Functional Description

1

System language

Supports simplified Chinese, English, Russian, Spanish, French, German, Italian and other languages

2

Operating system

Upgrade Android 12-13

3

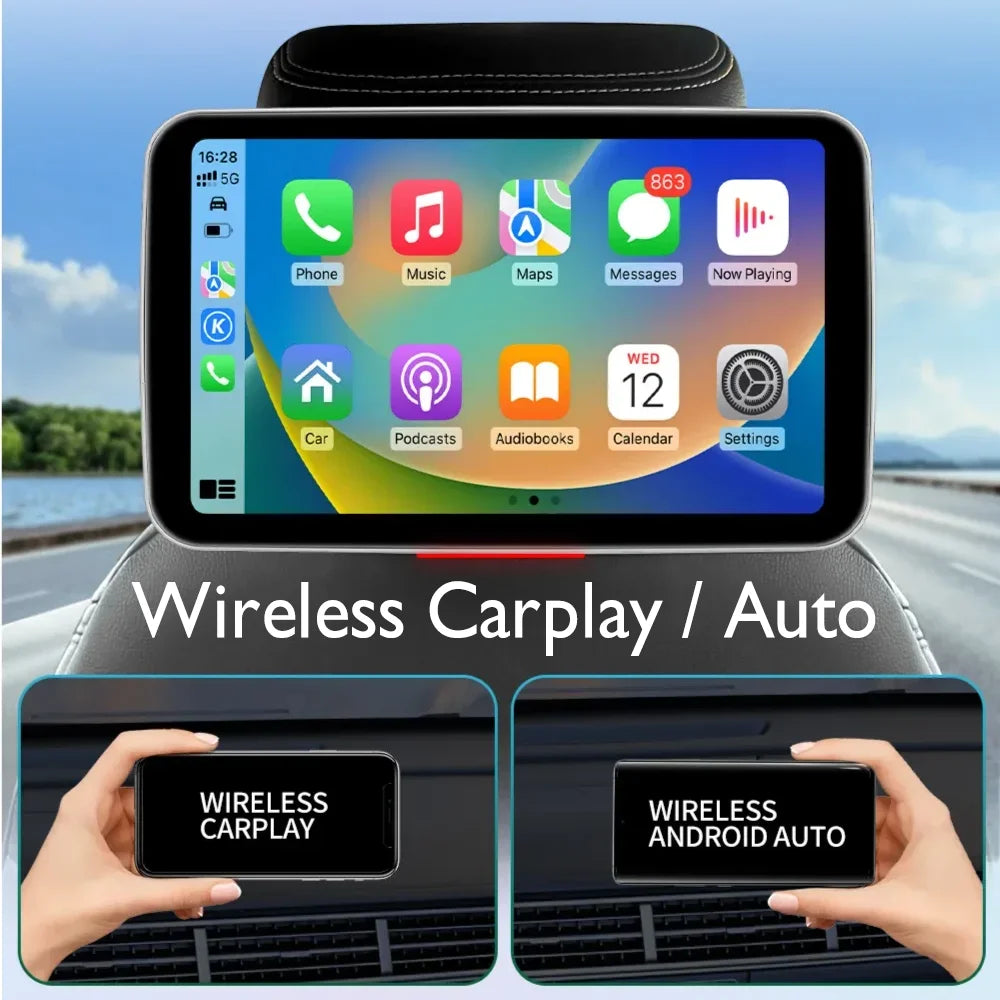

Car play

supports wireless connection transmission mode

4

Android Auto

supports wireless connection transmission mode

5

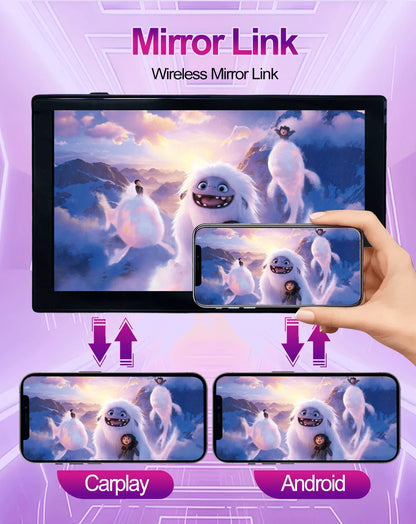

Mobile screen projection

Support wireless connection transmission mode

6

FM Transmitter

Support

7

Theme UI Configuration

Built-in multiple theme UI options (customizable)

8

Local multimedia

Support local audio and video playback

9

In-car entertainment

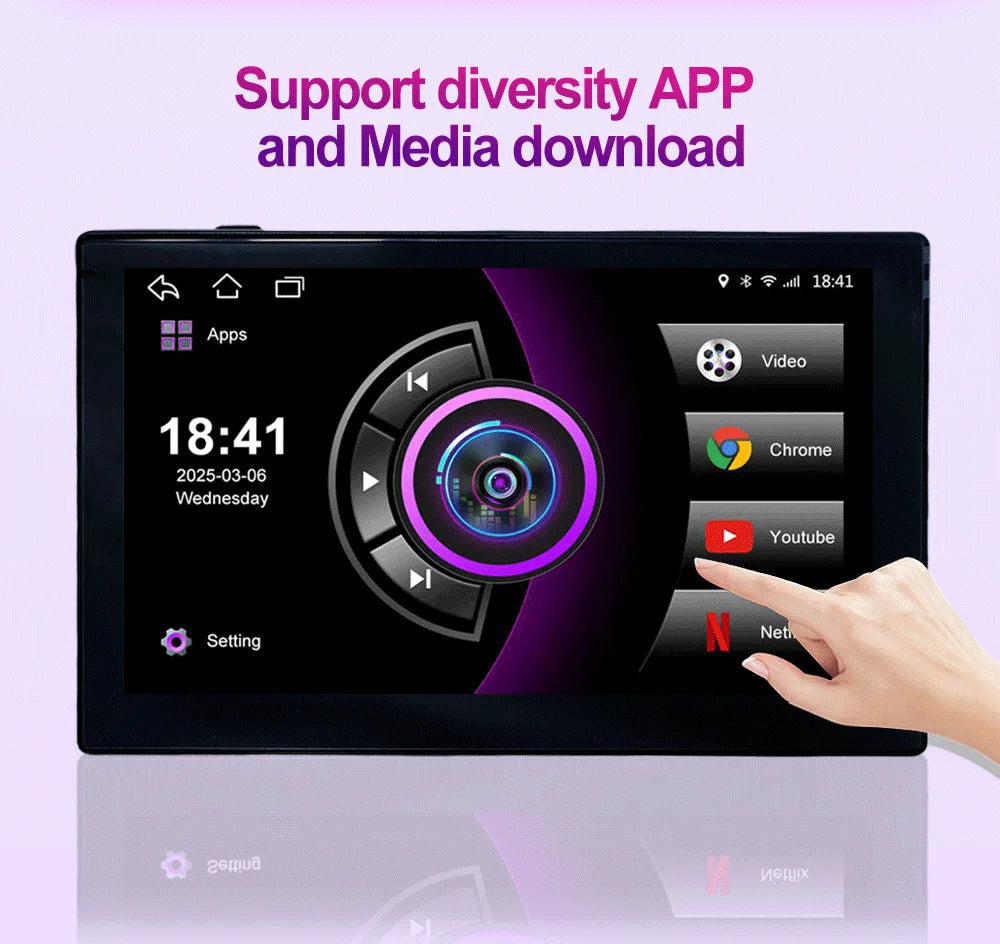

Supports YouTube, Spotify, Netflix, YouTube Music, Chrome, Google Play, mini games, etc.

10

Online OTA

Support FOTA online upgrade (ROM/APK)

2. Chip Specifications/Main Components

Serial number

Chip/component

Specifications

1

CPU

MediaTek P21 4-core A7 processor, main frequency can reach 1.3GHz; GPU: MP2-T400

2

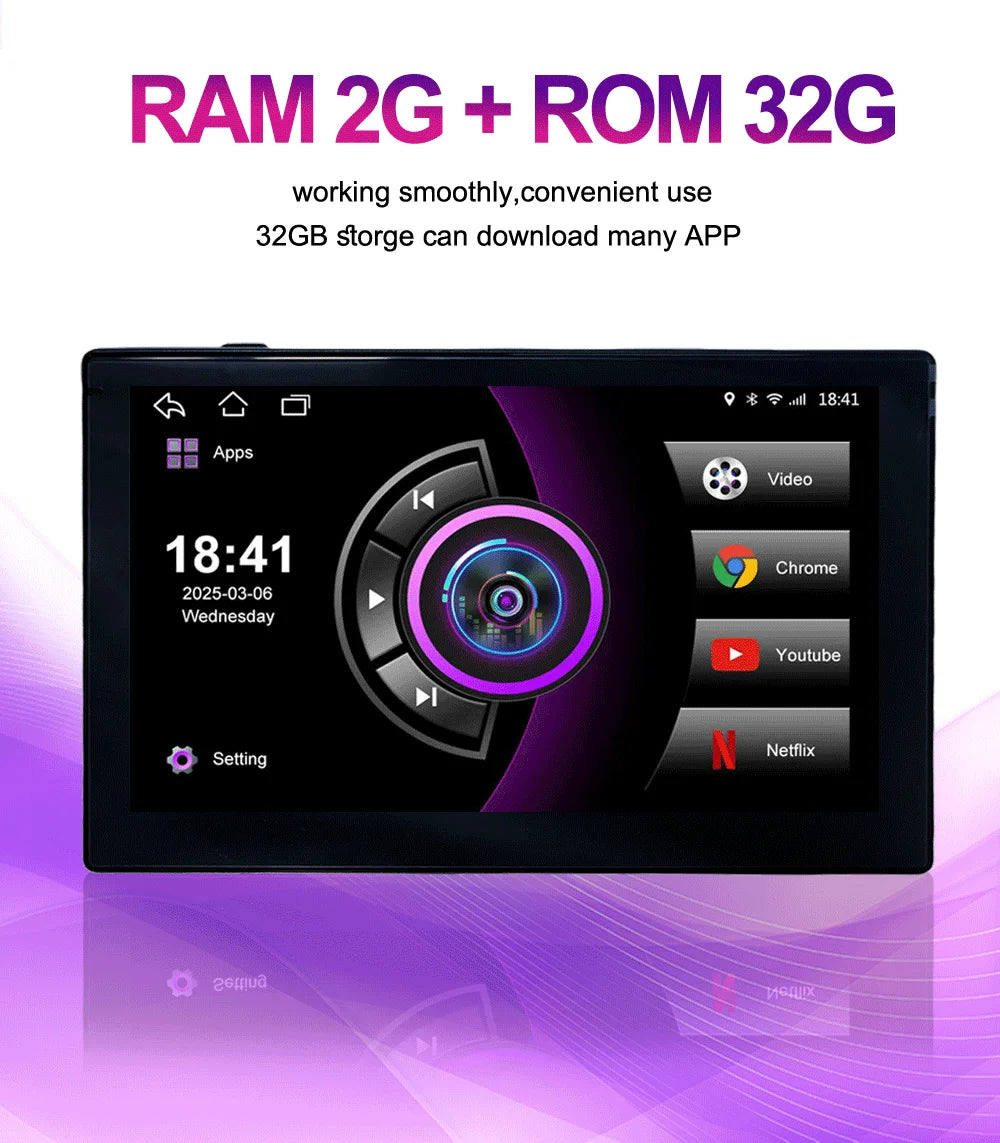

DDR

2GB LPDDR3

3

EMMC

32 EMMC (optional 64GB)

4

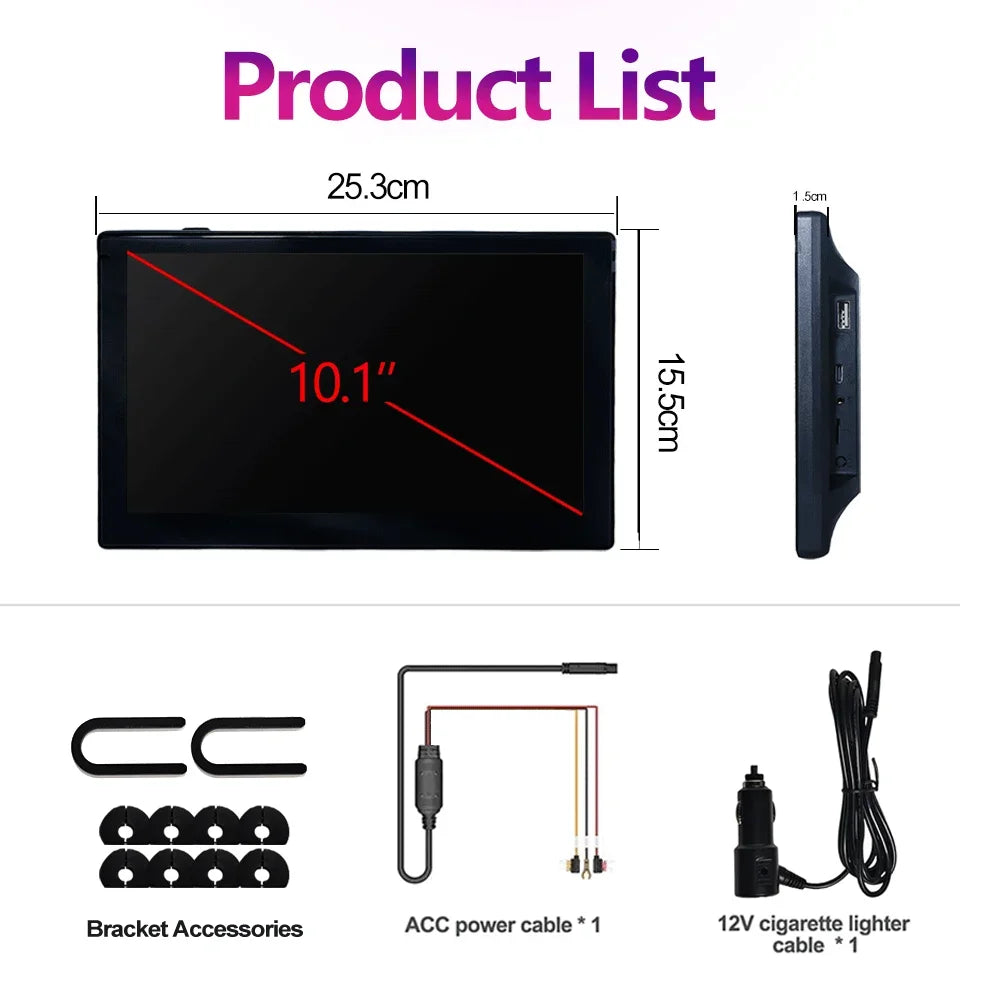

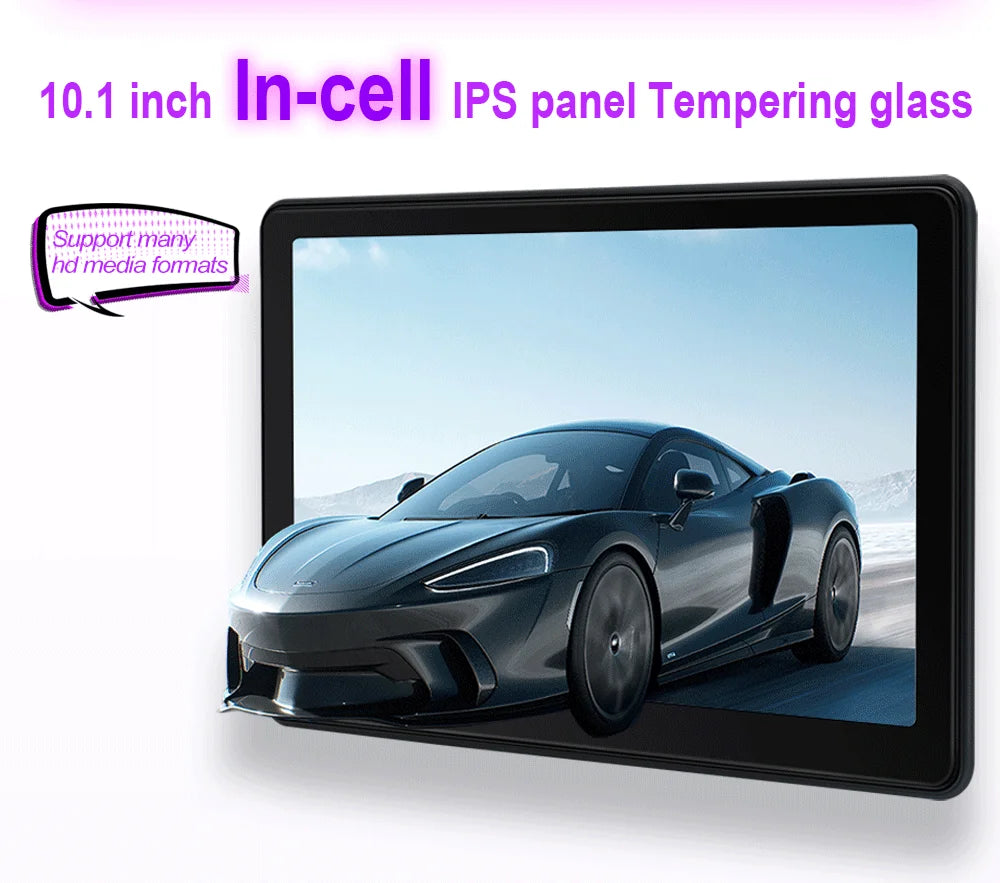

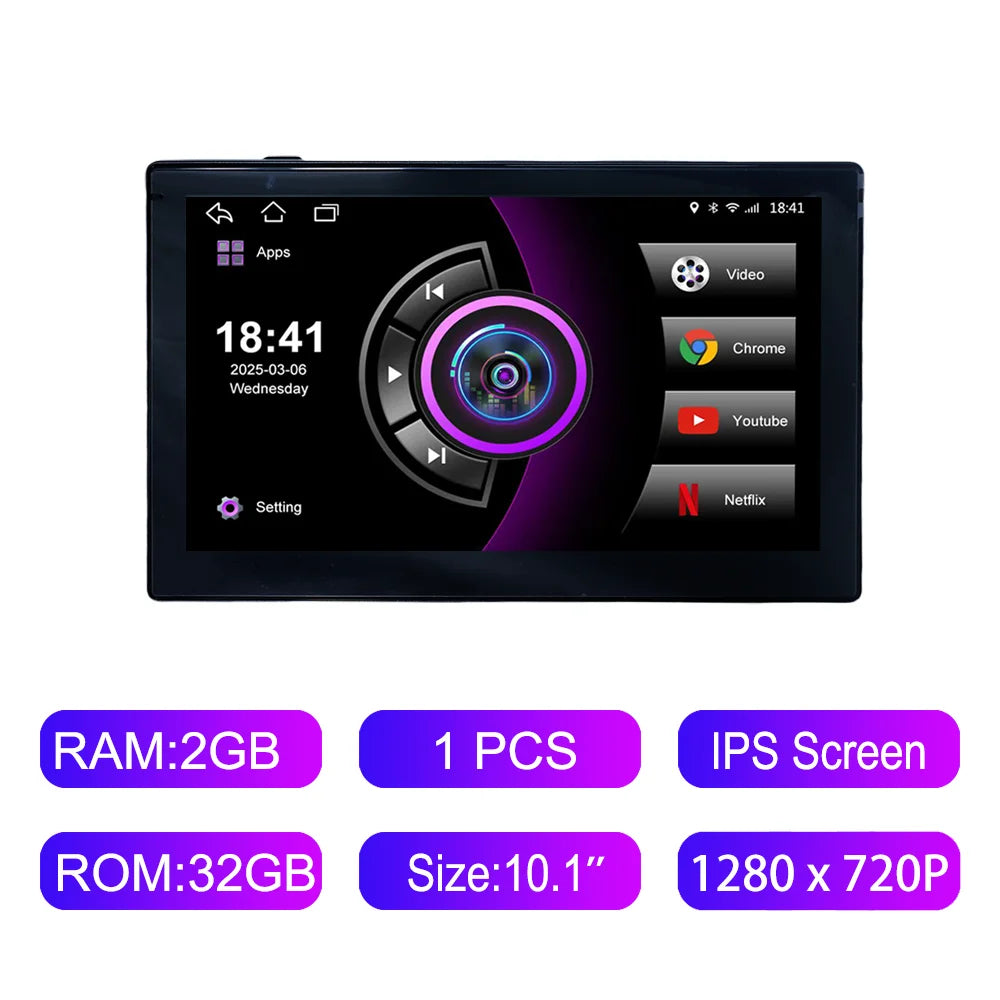

Screen size

10.1 inch

5

Screen type

40PIN MIPI interface, support IPS

6

Screen resolution

1280*720

7

TP Touch

6PIN MIPI interface, support 5-point touch, 2.5D/G+G

3. Hardware Function Parameters

Serial number

Hardware

Specification requirements description

1

GPS

Optional, GPS positioning receiver

2

USB

Type-C interface (power supply + FM antenna)

3

Bluetooth

2.4GHz built-in Bluetooth 2.0, supports Bluetooth music
Not support Bluetooth phone

4

WIFI

Support 2.4GHz frequency band

5

FM Transmitter

Support, 87.5~108MHZ, left and right channel audio wireless transmission

6

Physical buttons

POWER switch button

7

TF card holder

Support external TF card (microSD card), maximum support 256GB expansion, used to read SD card data

8

AUX audio output

Not support AUX left and right channel audio output

9

Video input

Support 1 channel video input

10

Audio format

MP3, WMA, AAC, RM, FALC, WAV

11

Video format

MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson Spark.Spark, VP8, AVS Stream, mkv

12

Image format

PG/BMP/JEPG/GIF/PNG

13

Speaker

Speaker 1 channel 8Ω 2W, support speaker output

14

Microphone

Optional, supports Carplay and Android Auto calls

4. Electrical performance and interface

Status description

Specification requirements description

Factory setting code:

888888

Environmental parameters

Operating temperature

-20℃～＋65℃

Storage temperature

–35℃～＋80℃

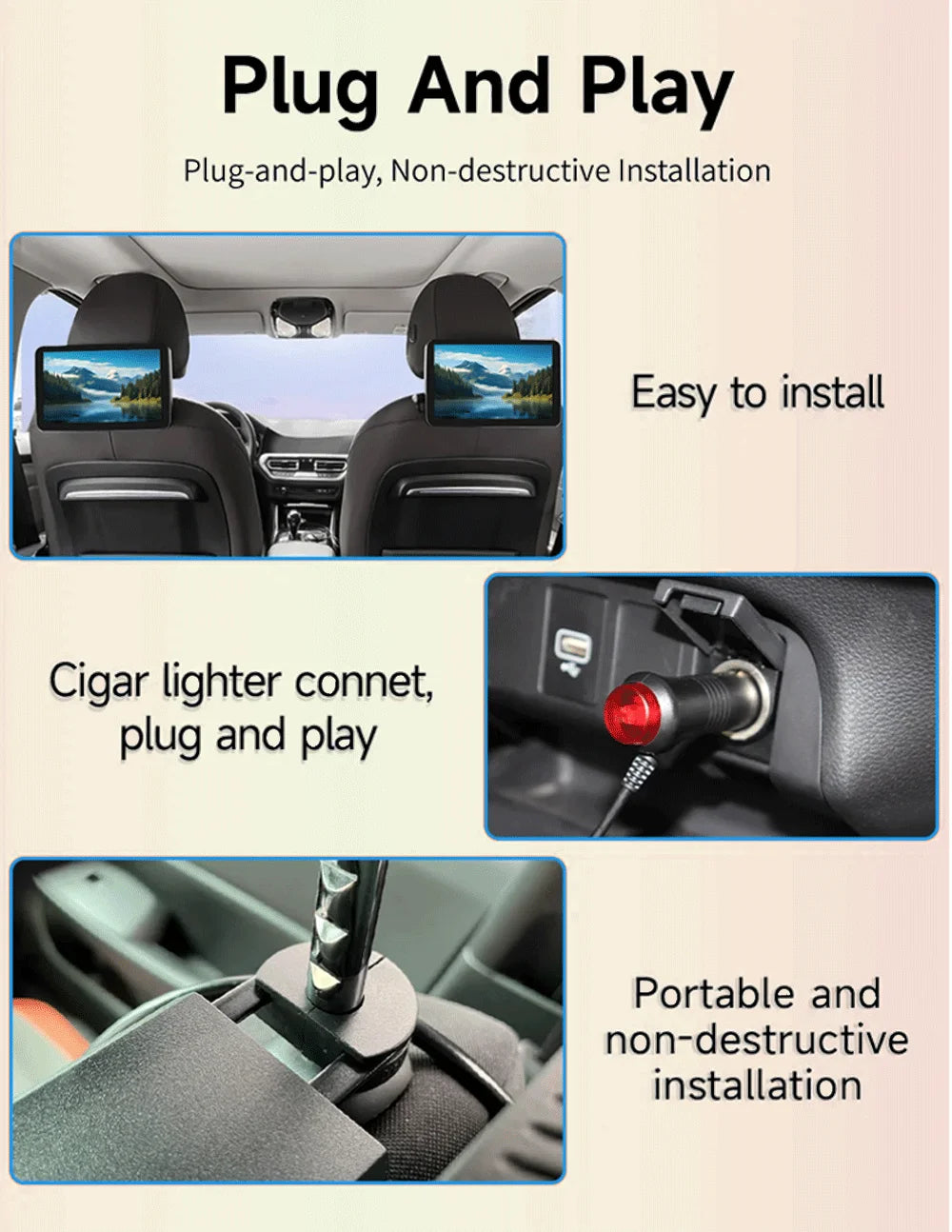

Power consumption

Operating voltage

DC 12V 3A
above 5PIN BMW power cable or car charger power cable TYPE-C interface

Working power consumption

Rated power 10W, maximum power 12.5W

Standby current

＜8mA

Startup time

ACC standby start

Less than 2s

Power off start

Less than 30s

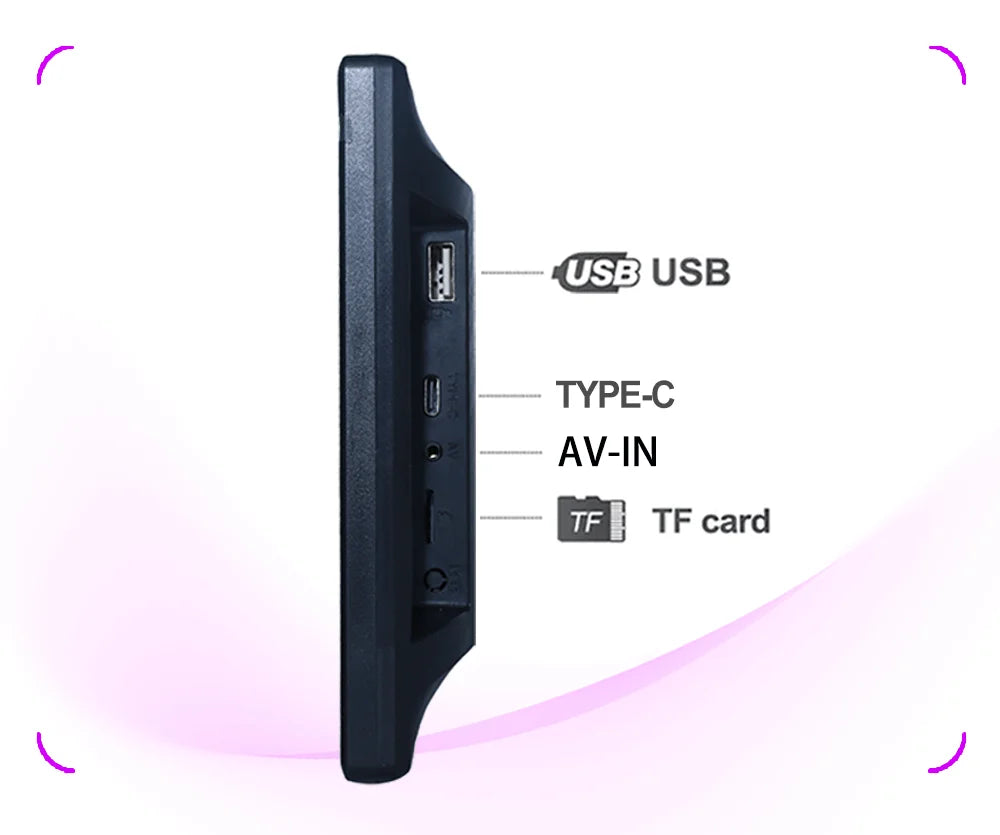

External interface

Type-c×1

Power input + FM transmitting antenna

SD card slot × 1

MP3, MP5 audio and video storage

2.5MM headphone interface*1

AV IN only supports video input, not rear camera AHD video input

USB switch interface*1

6PIN MIPI interface, 6P to 4P electronic cable connectedUSB adapter board
Download + read U disk data

Physical panel interface*1

12PIN MIPI interface, connected to KB adapter board
Standard physical key board, optional colorful light board

Button

Hidden reset button x1 (depending on the mold)

Power button × 1, short press to turn off/on the display, long press to turn off/on
